Generating Documents and Reports from DOCX Templates and JSON using Apryse and C#

In this article though, we will look at the “high-code” option, SDK DocGen, which is based directly on the Apryse SDK. It can be used entirely within the browser, but in this article, we will look at how it can be used within a C# application running on a local machine using .Net Core. The information in this article can be extended to performing document generation on other platforms.

Apryse has two distinct systems for generating documents and reports from templates. In both cases the templates are Office documents, but in neither case is there a need for Office to be installed to generate the final document from the template.

The first mechanism is a “low-code” solution – “Fluent”, and there have been several recent articles on using this versatile and powerful system. It can be used to create not just PDFs, but also other document formats, for example DOCX or PPTX or HTML. Furthermore, the template designer means that this system is suitable for anyone with moderate knowledge of Word allowing you to eliminate lengthy development work for your templates.

A significant difference between DocGen and Fluent is that DocGen requires the data to be in JSON format, whereas Fluent can access data from a huge range of data sources, including JSON, XML, SQLServer and OData.

In this article, we will

A quick search of the internet reveals that some document generation systems use a PDF as a template, then substitute content within the PDF. There is nothing wrong with generating documents in that way if it does everything that you need. However, when used with real data it is likely that you will soon find limitations.

You can read more about why using a PDF as a template is problematic here.

Using DOCX files as a template offers a more versatile format. The Apryse SDK provides a mechanism for viewing and editing Word documents without the need for Office to be installed. In fact, it is the library that provides the functionality behind the Xodo online editing tool.

With its ability to reflow text in just the same way that Word does, as well as its support for complex text and paragraph formatting, the Apryse SDK is an ideal tool for substituting text-markers (which are known at tags) in a template, in order to automatically generate high-quality, accurate documents that contain up-to-date data.

Before we go any further, let’s look at a live example of document generation from a DOCX template. You can choose any template, and the program will query it for tags, and use them to generate a data-entry form, which in turn is used to populate the template.

So, let’s see how we would do this in practice.

In this article, we will look at sample code written in C# which is included when you download the SDK.

The Apryse SDK is available in many different languages and for macOS, Linux and Windows. In this article we will look primarily at the Windows version. The other platforms have minor differences – if you have problems then please reach out to us on Discord.

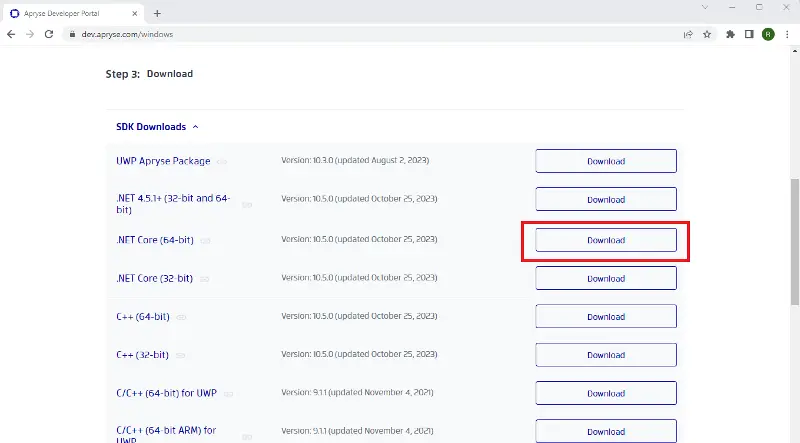

Head over to https://dev.apryse.com/windows, scroll down a little and download the bitness that you require.

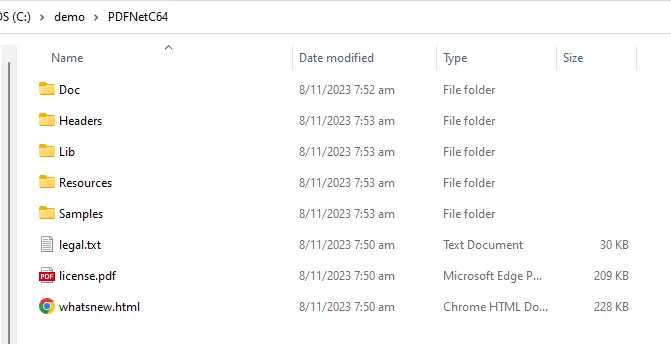

The downloaded SDK is a zip file on windows and macOS and as a tarball on Linux. In any event extract the archive which, on Windows, will create a folder called PDFNetC64.

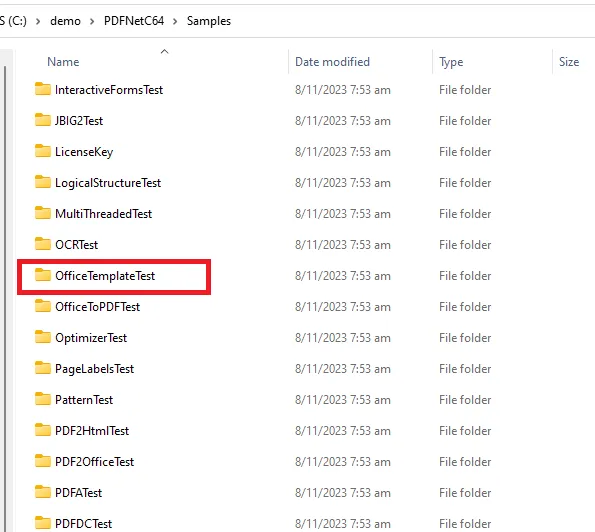

This folder contains not just the SDK itself, but documentation and a folder full of samples that demonstrate the huge range of functionality supported by Apryse. For now, we will look at the OfficeTemplateTest sample.

Before running any of the samples, you will need an Apryse Trial key which you can get here. This then needs to be pasted into the file LicenseKey.cs. If you forget to do so, then an error will occur, and you will see a message to remind you of what to do.

There are three options for running samples. The first method is to run each sample project sequentially directly from the console window using the batch file runall_dotnetcore.bat which is located in the root of the Samples folder.

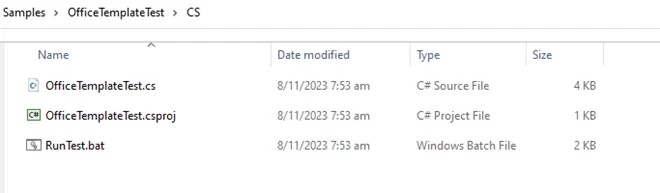

Alternatively, you can navigate to the CS folder of the OfficeTemplateTest sample and either run the RunTest.bat file for that specific sample, or else open the OfficeTemplateTest.csproj in Visual Studio.

The samples have been set up to work with multiple versions of Viflsual Studio. In order to work with as many versions of Visual Studio as possible, the samples currently target .NET Core 2.1. If you don’t have that Framework available, then you will either need to install it, or change the Target framework to one that is available.

A further problem is that the samples use System.Drawing.Common 4.5.0 which is known to have security implications on Linux and macOS (though not on Windows).

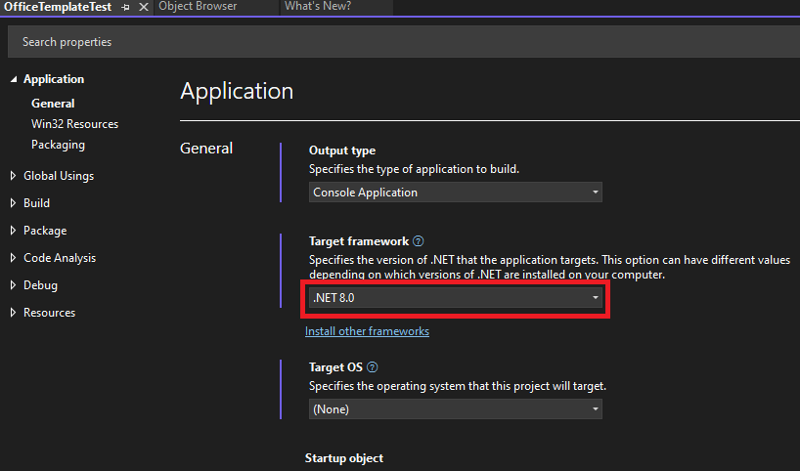

For this article I used Visual Studio 2022, and I set the target framework to .NET 8.0.

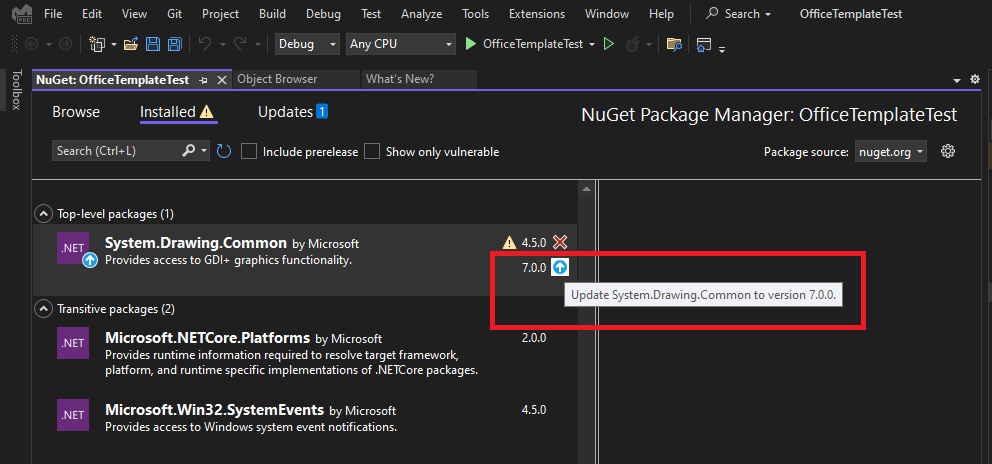

Updating the version of System.Drawing.Commonis also straightforward using the NuGet PackageManager.

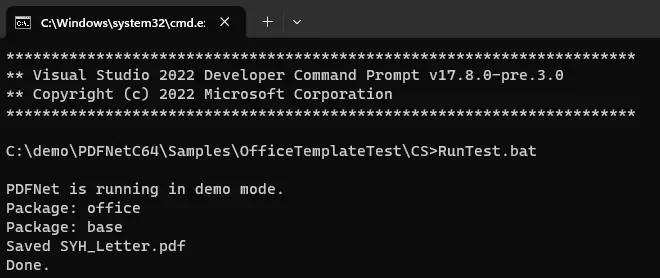

You can now open a console window and call RunTest.bat (or ./RunTest.bat in PowerShell). This will show some information and, after a few seconds, the document SYH_Letter.pdf will be saved.

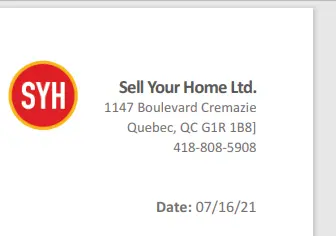

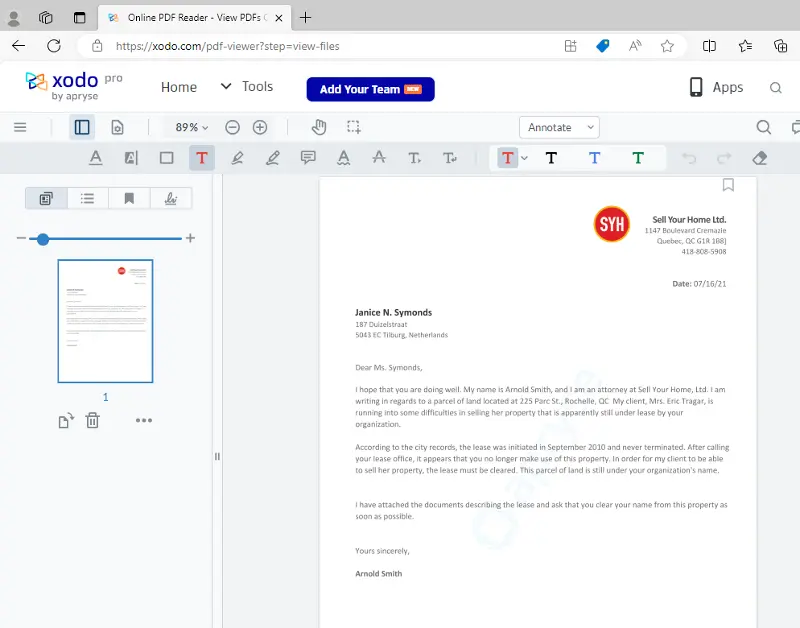

Let’s open that document.

That’s pretty cool – with very little effort we created a new document. What isn’t obvious is that we could create another one, and another one, and another, whenever the data changes. As such, the document will always be using the latest data. Let’s look at how we did that.

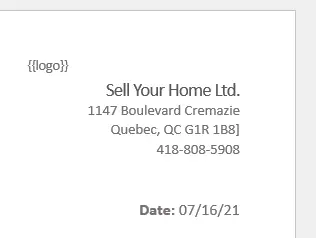

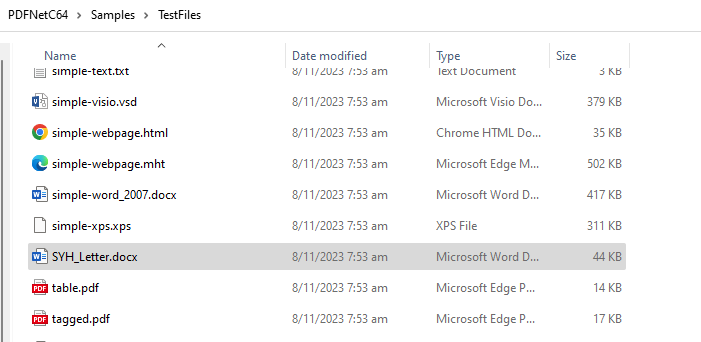

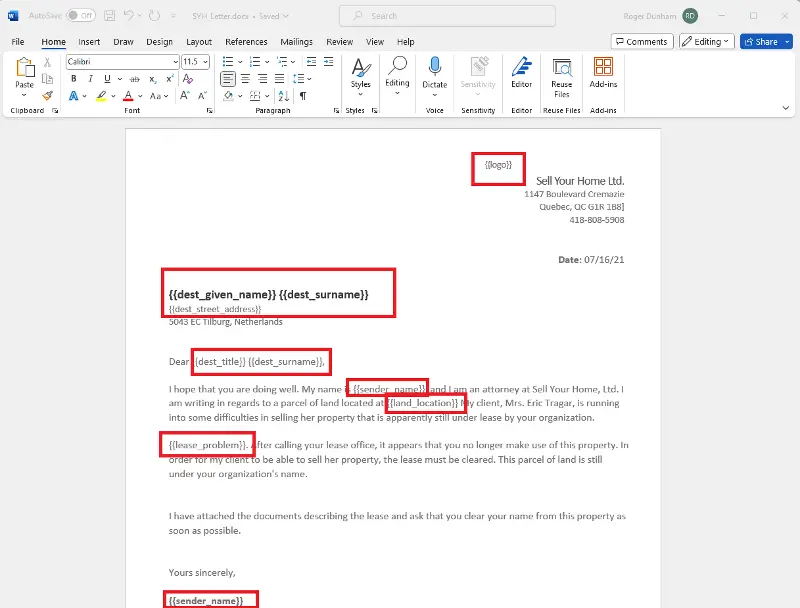

In the folder PDFNetC64\Samples\TestFiles you will find a file called SYH_Letter.docx.

This is the template that was used to create the PDF. If you open it in Word (or any other editor that supports DOCX) then you can see that it is just an ordinary DOCX file.

What makes it special is the tags – the pieces of text, such as {{dest_surname}} - which indicate where content should be replaced when generating the final document.

A tag, for example {{sender_name}}, typically starts, and end, with double curly braces (sometimes known as “mustache” braces). The tag markers are customizable, so you can use something else if you prefer.

Although this template does not include one, it is possible to include a table in the document. The generated table would automatically expand to contain whatever number of rows are specified in the data, so there is no need to know the number of rows at the time of template creation.

Since DocGen is supported across a range of platforms and languages, the skills that you develop working in one language are generally transferrable to another. As such you can read more about setting up a multi-row table in the article about document generation using React and use the information included there with C#.

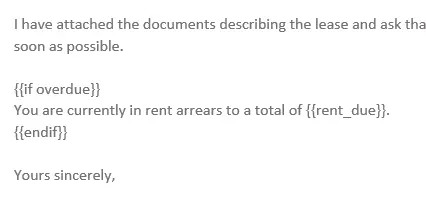

It is also possible to specify conditional text, for example, to show one block of text if the data contains some feature (for example a field for “overdue”) and a different block of text, or none at all, if the data doesn’t contain that feature. You can find information here about how to do set up conditional text, but an example is shown below.

OK, we will leave the template there, and next look at the data.

The text substitution API needs to be supplied with a JSON dictionary, where each template tag within the template matches a key within the dictionary. The content of the JSON values can be text, images, structured input (html and markdown) or objects.

Please see here for a detailed description of the JSON file requirements.

While SDK DocGen does require the data to be in JSON format, the way that the JSON is generated is up to you. It could be hard-coded, acquired from user input, a local file, a database or even from a web call.

For our simple template though, the sample project uses the following hard-coded data:

Most of the layout is self-explanatory, but the handling of the logo image requires a mention:

The logo is specified as an image_url, including its path, width, and height. When the document is generated, the image will be loaded into the final document.

While most of the data is just text, which will ultimately be displayed using the formatting form the template, it is also possible to include styling information in the data - either as html or markdown.

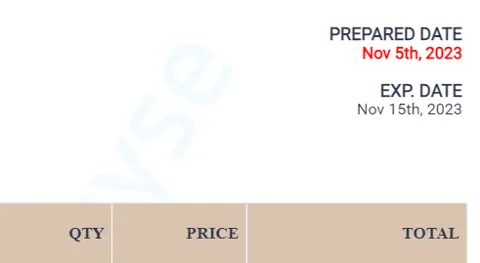

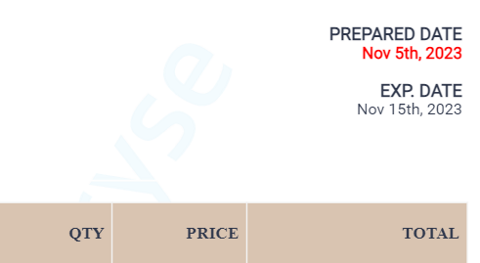

In this example, the formatting of the date tag will be red and bold, rather than just text.

This is a powerful mechanism, and can be used to add paragraphs, headings, and styling.

Everything that we have seen so far – template generation and JSON format - is platform-independent. In fact, the results will be the same whether the actual conversion occurs within the browser, in the cloud or on a local machine.

With document generation supported on UWP, Android, Linux, macOS and Windows, as well as the Web, there are many opportunities for you to use this technology.The actual process of document generation does, however, have minor, platform specific, variations – so reach out to us if you need a hand getting started.

In the case of generating documents using C#, the actual document generation requires nothing more than calling FillTemplateJson with the JSON data.

FillTemplateJson causes the Apryse SDK-DocGen system to produce a PDF by substituting each of the tags in the template with data from the JSON object, including iterating through tables. This is done entirely within the Apryse code – there is no need for Word to be installed, since it isn’t Word that is performing the substitution.

It really is that simple. One line of code takes the template, merges it with the JSON data, and creates a document. All that is still needed, is to save the resulting PDF.

The SDK DocGen mechanism creates a PDF (although this can be saved as a PNG, and the ability to save as Office documents is in development), and it is extremely good at doing that.

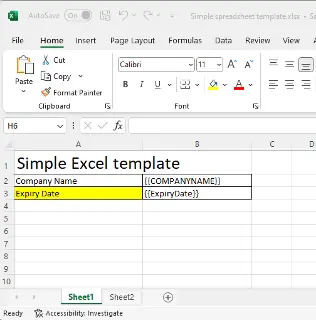

While the most commonly used template format is DOCX, the system also works with PowerPoint and Excel templates, including the old style DOC, XLS and PPT file types.

In each case, the tags that are to be substituted are marked in exactly the same way.

This system is great where the data source is JSON (or can easily be converted into JSON), the required document format is PDF (although as mentioned above, the ability to save as Office is in development), and the document structure is relatively straightforward. This mechanism is also a great solution for use with Appian or Salesforce – with no external libraries being required.

One of the disadvantages of this system, though, is that it is “high-code”. A change in the data source will probably require help from a developer. For example, the data source for a RESTful API might change, or the structure of data coming from a reporting system might need to be updated. In the case of Structured Input (formatting via html and markdown), a change to the formatting would likely need developer help. As such, if your data source (or Structured Input based formatting) is likely to change then Apryse Fluent may be a better fit.

Similarly, in any situation where your use-case isn’t supported (such as requiring complex conditional formatting or charts)then Apryse Fluent will be able to take you much further.

We have seen how we can create templates in a familiar environment, that can support text of initially unknown length by behaving like Word documents – adding new lines or overflowing onto the next page as dictated by the data. We have also seen how we can add logic to the template so that whether or not some parts of the document are only shown depends on some data condition.

We have also seen how this can all be done without the need for Office to be installed on the machine where document generation is occurring. Furthermore, if you want to extend the document generation in some way – perhaps developing a web app, where conversion occurs entirely within the browser, then the information that is included in this article is a great basis for taking those next steps.

When you are ready to get started, see the documentation for the SDK to help you to get up to speed quickly. Don’t forget, you can also reach out to us on Discord if you have any issues.
